Time-series forecasting enables us to predict likely future values for a dataset based on historical time-series data. Time-series data collectively represents how a system, process, or behavior changes over time. When you accumulate millions of data points over a time period, you can build models to predict the next set of values likely to occur.
Time-series predictions can be used to:
- Forecast cloud infrastructure expenses next quarter
- Forecast the value of a given stock in the future
- Forecast the number of units of a product likely to be sold next quarter
- Forecast the remaining lifespan of an IoT device
- Forecast the number of taxi or ride share drivers necessary for a big holiday evening
Time-series forecasting alone is a powerful tool. But time-series data joined with business data can be a competitive advantage for any developer. TimescaleDB is PostgreSQL for time-series data and as such, time-series data stored in TimescaleDB can be easily joined with business data in another relational database in order to develop an even more insightful forecast into how your data (and business) changes over time.
This time-series forecasting example demonstrates how to integrate TimescaleDB with R, Apache MADlib, and Python to perform various time-series forecasting methods. It uses New York City taxicab data that is also used in the Hello Timescale Tutorial. The dataset contains information about all yellow cab trips in New York City in January 2016, including pickup and dropoff times, GPS coordinates, and total price of a trip. You can extract some interesting insights from this rich dataset, build a time-series forecasting model, and explore the use of various forecasting and machine learning tools.
Prerequisites:
- Installed TimescaleDB
- Downloaded and loaded dataset from Hello Timescale Tutorial
- Installed and set up PostGIS in database
- Installed R
- Installed Python
First, let's create the schema and populate the tables. Download the file
forecast.sql and execute the following command:
psql -U postgres -d tsdb -h localhost -f forecast.sql
The forecast.sql file contains SQL statements that create three
TimescaleDB hypertables rides_count, rides_length and rides_price.
Let's look at how to create the rides_count table as an example.
Here is a portion of the code taken from forecast.sql:
CREATE TABLE rides_count(one_hour TIMESTAMP WITHOUT TIME ZONE NOT NULL,count NUMERIC);SELECT create_hypertable('rides_count', 'one_hour');INSERT INTO rides_countSELECT time_bucket_gapfill('1 hour', pickup_datetime, '2016-01-01 00:00:00','2016-01-31 23:59:59') AS one_hour,COUNT(*) AS countFROM ridesWHERE ST_Distance(pickup_geom, ST_Transform(ST_SetSRID(ST_MakePoint(-74.0113,40.7075),4326),2163)) < 400AND pickup_datetime < '2016-02-01'GROUP BY one_hourORDER BY one_hour;
Notice that you have made the rides_count table a TimescaleDB hypertable.
This allows you to take advantage of TimescaleDB's faster insert and query
performance with time-series data. Here, you can see how PostgreSQL aggregate
functions such as COUNT and various PostGIS functions all work as usual
with TimescaleDB. You can use PostGIS to select data points from the original
rides table where the pickup location is less than 400m from the GPS location
(40.7589, -73.9851), which is Times Square.
The data comes from the NYC Taxi and Limousine Commission. It is
missing data points for certain hours. You can gapfill the missing values with
0. To learn more, see the gap filling documentation. A similar
method is used to create rides_length and rides_price.
Before you move onto the next few sections, check that the following tables are in your database.
\dtList of relationsSchema | Name | Type | Owner--------+-----------------+-------+----------public | payment_types | table | postgrespublic | rates | table | postgrespublic | rides | table | postgrespublic | rides_count | table | postgrespublic | rides_length | table | postgrespublic | rides_price | table | postgrespublic | spatial_ref_sys | table | postgres(7 rows)
The ARIMA (Autoregressive Integrated Moving Average) model is a tool that is often used in time-series analysis to better understand a dataset and make predictions on future values. The ARIMA model can be broadly categorized as seasonal and non-seasonal. Seasonal ARIMA models are used for datasets that have characteristics that repeat over fixed periods of time. For example, a dataset of hourly temperature values over a week has a seasonal component with a period of 1 day, since the temperature goes up during the day and down over night every day. In contrast, the price of Bitcoin over time is (probably) non-seasonal since there is no clear observable pattern that recurs in fixed time periods.
This tutorial uses R to analyze the seasonality of the number of taxicab pickups at Times Square over a week.
The table rides_count contains the data needed for this section of the tutorial.
rides_count has two columns one_hour and count. The one_hour column is
a TimescaleDB time_bucket for every hour from January 1 to January 31.
The count column is the number of pickups from Times Square during each hourly period.
SELECT * FROM rides_count;one_hour | count---------------------+-------2016-01-01 00:00:00 | 1762016-01-01 01:00:00 | 2182016-01-01 02:00:00 | 2212016-01-01 03:00:00 | 3442016-01-01 04:00:00 | 3972016-01-01 05:00:00 | 2692016-01-01 06:00:00 | 1922016-01-01 07:00:00 | 1452016-01-01 08:00:00 | 1662016-01-01 09:00:00 | 2332016-01-01 10:00:00 | 2952016-01-01 11:00:00 | 4402016-01-01 12:00:00 | 4722016-01-01 13:00:00 | 4722016-01-01 14:00:00 | 4852016-01-01 15:00:00 | 5382016-01-01 16:00:00 | 4302016-01-01 17:00:00 | 4512016-01-01 18:00:00 | 4962016-01-01 19:00:00 | 5382016-01-01 20:00:00 | 4852016-01-01 21:00:00 | 6192016-01-01 22:00:00 | 11972016-01-01 23:00:00 | 798...
Create two PostgreSQL views, rides_count_train and rides_count_test for
the training and testing datasets.
-- Make the training datasetCREATE VIEW rides_count_train ASSELECT * FROM rides_countWHERE one_hour <= '2016-01-21 23:59:59';-- Make the testing datasetCREATE VIEW rides_count_test ASSELECT * FROM rides_countWHERE one_hour >= '2016-01-22 00:00:00';
R has an RPostgres package which allows you to connect to your database from R.
The code below establishes a connection to the PostgreSQL database nyc_data.
You can connect to a different database simply by changing the parameters of
dbConnect. The final line of code should print out a list of all tables in
your database. This means that you have successfully connected and are ready
to query the database from R.
# Install and load RPostgres packageinstall.packages("RPostgres")library("DBI")# creates a connection to the postgres databasecon <- dbConnect(RPostgres::Postgres(), dbname = "nyc_data",host = "localhost",user = "postgres")# list tables in database to verify connectiondbListTables(con)
You can query the database with SQL code inside R. Putting the query result in an R data frame allows you to analyze the data using tools provided by R.
# query the database and input the result into an R data frame# training dataset with data 2016/01/01 - 2016/01/21count_rides_train_query <- dbSendQuery(con, "SELECT * FROM rides_count_train;")count_rides_train <- dbFetch(count_rides_train_query)dbClearResult(count_rides_train_query)head(count_rides_train)one_hour count1 2016-01-01 00:00:00 1762 2016-01-01 01:00:00 2183 2016-01-01 02:00:00 2214 2016-01-01 03:00:00 3445 2016-01-01 04:00:00 3976 2016-01-01 05:00:00 269# testing dataset with data 2016/01/22 - 2016/01/31count_rides_test_query <- dbSendQuery(con, "SELECT * FROM rides_count_test")count_rides_test <- dbFetch(count_rides_test_query)dbClearResult(count_rides_test_query)head(count_rides_test)one_hour count1 2016-01-22 00:00:00 7022 2016-01-22 01:00:00 4013 2016-01-22 02:00:00 2474 2016-01-22 03:00:00 1695 2016-01-22 04:00:00 1406 2016-01-22 05:00:00 100
In order to feed the data into an ARIMA model, you must first convert the
data frame into a time-series object in R. xts is a package that allows
you to do this easily. You can also set the frequency of the time-series object
to 168. This is because the number of pickups is expected to fluctuate with
a fixed pattern every week, and there are 168 hours in a week, or in other
words, 168 data points in each seasonal period. If you want to model
the data as having a seasonality of 1 day, you can change the frequency
parameter to 24.
# Install and load xts packageinstall.packages("xts")library("xts")# convert the data frame into time-seriesxts_count_rides <- xts(count_rides_train$count, order.by = as.POSIXct(count_rides_train$one_hour, format = "%Y-%m-%d %H:%M:%S"))# set the frequency of series as weekly 24 * 7attr(xts_count_rides, 'frequency') <- 168
The forecast package in R provides a useful function
auto.arima, which automatically finds the best ARIMA parameters for the
dataset. Set the parameter D, which captures the seasonality of the model, to 1
to force the function to find a seasonal model. This calculation can take a
while to compute (in this dataset, around five minutes). Once the computation is
complete, you can save the output of the auto.arima function into fit and
get a summary of the ARIMA model that has been created.
# Install and load the forecast package needed for ARIMAinstall.packages("forecast")library("forecast")# use auto.arima to automatically get the arima model parameters with best fitfit <- auto.arima(xts_count_rides[,1], D = 1, seasonal = TRUE)# see the summary of the fitsummary(fit)Series: xts_count_rides[, 1]ARIMA(4,0,2)(0,1,0)[168] with driftCoefficients:ar1 ar2 ar3 ar4 ma1 ma2 drift2.3211 -1.8758 0.3959 0.1001 -1.7643 0.9444 0.3561s.e. 0.0634 0.1487 0.1460 0.0588 0.0361 0.0307 0.0705sigma^2 estimated as 5193: log likelihood=-1911.21AIC=3838.42 AICc=3838.86 BIC=3868.95Training set error measures:ME RMSE MAE MPE MAPE MASETraining set -0.2800571 58.22306 33.15943 -1.783649 7.868031 0.4257707ACF1Training set -0.02641353
Finally, the ARIMA model can be used to forecast future values.
The h parameter specifies the number of steps to forecast.
# forecast future values using the arima model, h specifies the number of readings to forecastfcast <- forecast(fit, h=168)fcastPoint Forecast Lo 80 Hi 80 Lo 95 Hi 954.000000 659.0645 566.71202 751.4169 517.82358229 800.30534.005952 430.7339 325.02891 536.4388 269.07209741 592.39564.011905 268.1259 157.28358 378.9682 98.60719504 437.64464.017857 228.3024 116.08381 340.5210 56.67886523 399.92604.023810 200.7340 88.25064 313.2174 28.70554423 372.76254.029762 140.5758 28.04128 253.1103 -31.53088134 312.68244.035714 196.1703 83.57555 308.7650 23.97150358 368.36904.041667 282.6171 169.80545 395.4288 110.08657346 455.14764.047619 446.6713 333.28115 560.0614 273.25604289 620.08654.053571 479.9449 365.53618 594.3537 304.97184340 654.9180...
The output of forecast can be hard to decipher. You can plot the
forecasted values with the code below:
# plot the values forecastedplot(fcast, include = 168, main="Taxicab Pickup Count in Times Square by Time", xlab="Date", ylab="Pickup Count", xaxt="n", col="red", fcol="blue")ticks <- seq(3, 5, 1/7)dates <- seq(as.Date("2016-01-15"), as.Date("2016-01-29"), by="days")dates <- format(dates, "%m-%d %H:%M")axis(1, at=ticks, labels=dates)legend('topleft', legend=c("Observed Value", "Predicted Value"), col=c("red", "blue"), lwd=c(2.5,2.5))# plot the observed values from the testing datasetcount_rides_test$x <- seq(4, 4 + 239 * 1/168, 1/168)count_rides_test <- subset(count_rides_test, count_rides_test$one_hour < as.POSIXct("2016-01-29"))lines(count_rides_test$x, count_rides_test$count, col="red")
In the graphing of this data, the grey area around the prediction line in blue is the prediction interval, or the uncertainty of the prediction, while the red line is the actual observed pickup count. The number of pickups on Saturday January 23 is zero because the data is missing for this period of time.
You might find that the prediction for January 22 matches impressively with the observed values, but the prediction overestimates for the following days. It is clear that the model has captured the seasonality of the data, as you can see the forecasted values of the number of pickups drop dramatically overnight from 1 AM, before rising again from around 6 AM. There is a noticeable increase in the number of pickups in the afternoon compared to the morning, with a slight dip around lunchtime and a sharp peak around 6 PM when presumably people take cabs to return home after work.
While these findings do not reveal anything completely unexpected, it is still valuable to have the analysis verify your expectations. It must be noted that the ARIMA model is not perfect and this is evident from the anomalous prediction made for January 25. The ARIMA model created uses the previous week's data to make predictions. January 18 2016 was Martin Luther King day, and so the distribution of ride pickups throughout the day is slightly different from that of a standard Monday. Also, the holiday probably affected riders' behavior on the surrounding days too. The model does not pick up such anomalous data that arise from various holidays and this must be noted before reaching a conclusion. Simply taking out such anomalous data, by only using the first two weeks of January for example, may have led to a more accurate prediction. This demonstrates the importance of understanding the context behind your data.
Although R offers a rich library of statistical models, it requires importing the data into R before performing calculations. With a larger dataset, this can become a bottleneck to marshal and transfer all the data to the R process (which itself might run out of memory and start swapping). So, let's look into an alternative method that allows you to move computations to the database and improve this performance.
MADlib is an open source library for in-database data analytics that provides a wide collection of popular machine learning methods and various supplementary statistical tools.
MADlib supports many machine learning algorithms that are available in R and Python. And by executing these machine learning algorithms within the database, it may be efficient enough to process them against an entire dataset rather than pulling a much smaller sample to an external program.
Install MADlib following the steps outlined in their documentation: MADlib Installation Guide.
Set up MADlib in the nyc_data database:
/usr/local/madlib/bin/madpack -s madlib -p postgres -c [email protected]/nyc_data install
warning
This command might differ depending on the directory in which you installed MADlib and the names of your PostgreSQL user, host and database.
Now you can make use of MADlib's library to analyze the taxicab dataset. Here, you can train an ARIMA model to predict the price of a ride from JFK to Times Square at a given time.
Let's look at the rides_price table. The trip_price column is the
average price of a trip from JFK to Times Square during each hourly period. Data
points that are missing due to no rides being taken during a certain hourly
period are filled with the previous value. This is done by
gap filling, mentioned earlier in this tutorial.
SELECT * FROM rides_price;one_hour | trip_price---------------------+------------------2016-01-01 00:00:00 | 58.342016-01-01 01:00:00 | 58.342016-01-01 02:00:00 | 58.342016-01-01 03:00:00 | 58.342016-01-01 04:00:00 | 58.342016-01-01 05:00:00 | 59.592016-01-01 06:00:00 | 58.342016-01-01 07:00:00 | 60.38333333333332016-01-01 08:00:00 | 61.25752016-01-01 09:00:00 | 58.4352016-01-01 10:00:00 | 63.9522016-01-01 11:00:00 | 59.95769230769232016-01-01 12:00:00 | 60.4622016-01-01 13:00:00 | 61.652016-01-01 14:00:00 | 58.3422016-01-01 15:00:00 | 59.89652016-01-01 16:00:00 | 61.64689655172412016-01-01 17:00:00 | 58.9822016-01-01 18:00:00 | 64.288752016-01-01 19:00:00 | 60.84333333333332016-01-01 20:00:00 | 61.8881252016-01-01 21:00:00 | 61.40642857142862016-01-01 22:00:00 | 61.1076190476192016-01-01 23:00:00 | 57.9088888888889
You can also create two tables for the training and testing datasets. You can create tables instead of views here because you need to add columns to these datasets later in the time-series forecast analysis.
-- Make the training datasetSELECT * INTO rides_price_train FROM rides_priceWHERE one_hour <= '2016-01-21 23:59:59';-- Make the testing datasetSELECT * INTO rides_price_test FROM rides_priceWHERE one_hour >= '2016-01-22 00:00:00';
Now you can use MADlib's ARIMA library to make forecasts on your dataset.
MADlib does not yet offer a method that automatically finds the best
parameters of the ARIMA model. So, the non-seasonal orders of the
ARIMA model are obtained by using R's auto.arima function in the same
way you obtained them in the previous section with seasonal ARIMA.
Here is the R code:
# Connect to database and fetch recordslibrary("DBI")con <- dbConnect(RPostgres::Postgres(), dbname = "nyc_data",host = "localhost",user = "postgres")rides_price_train_query <- dbSendQuery(con, "SELECT * FROM rides_price_train;")rides_price_train <- dbFetch(rides_price_train_query)dbClearResult(rides_price_train_query)# convert the dataframe into a time-serieslibrary("xts")xts_rides_price <- xts(rides_price_train$trip_price, order.by = as.POSIXct(rides_price_train$one_hour, format = "%Y-%m-%d %H:%M:%S"))attr(xts_rides_price, 'frequency') <- 168# use auto.arima() to calculate the orderslibrary("forecast")fit <- auto.arima(xts_rides_price[,1])# see the summary of the fitsummary(fit)Series: xts_rides_price[, 1]ARIMA(2,1,3)Coefficients:ar1 ar2 ma1 ma2 ma30.3958 -0.5142 -1.1906 0.8263 -0.5791s.e. 0.2312 0.1593 0.2202 0.2846 0.1130sigma^2 estimated as 11.06: log likelihood=-1316.8AIC=2645.59 AICc=2645.76 BIC=2670.92Training set error measures:ME RMSE MAE MPE MAPE MASETraining set 0.1319955 3.30592 2.186295 -0.04371788 3.47929 0.6510487ACF1Training set -0.002262549
Of course, you can continue the analysis with R by following the same steps in the previous seasonal ARIMA section. Unfortunately, MADlib does not yet offer a way to automatically find the orders of the ARIMA model.
However with a larger dataset, you could take the approach of loading a subset of the data to calculate the model's parameters in R and then train the model using MADlib. You can use a combination of the options outlined in this tutorial to take advantage of the strengths and work around weaknesses of the different tools.
Using the parameters ARIMA(2,1,3) found using R, you can use MADlib's
arima_train and arima_forecast functions.
-- train arima model and forecast the price of a ride from JFK to Times SquareDROP TABLE IF EXISTS rides_price_output;DROP TABLE IF EXISTS rides_price_output_residual;DROP TABLE IF EXISTS rides_price_output_summary;DROP TABLE IF EXISTS rides_price_forecast_output;SELECT madlib.arima_train('rides_price_train', -- input table'rides_price_output', -- output table'one_hour', -- timestamp column'trip_price', -- time-series columnNULL, -- grouping columnsTRUE, -- include_meanARRAY[2,1,3] -- non-seasonal orders);SELECT madlib.arima_forecast('rides_price_output', -- model table'rides_price_forecast_output', -- output table240 -- steps_ahead (10 days));
Let's examine what values the trained ARIMA model forecasted for the next day.
SELECT * FROM rides_price_forecast_output;steps_ahead | forecast_value-------------+----------------1 | 62.31757466352 | 62.71265208453 | 62.89203864244 | 62.75504463395 | 62.6064068196 | 62.61970888427 | 62.70321730558 | 62.72925779439 | 62.695601582210 | 62.6685763075...
The model seems to suggest that the price of a ride from JFK to Times Square remains pretty much constant on a day-to-day basis. MADlib also provides various statistical functions to evaluate the model.
ALTER TABLE rides_price_test ADD COLUMN id SERIAL PRIMARY KEY;ALTER TABLE rides_price_test ADD COLUMN forecast DOUBLE PRECISION;UPDATE rides_price_testSET forecast = rides_price_forecast_output.forecast_valueFROM rides_price_forecast_outputWHERE rides_price_test.id = rides_price_forecast_output.steps_ahead;SELECT madlib.mean_abs_perc_error('rides_price_test', 'rides_price_mean_abs_perc_error', 'trip_price', 'forecast');SELECT * FROM rides_price_mean_abs_perc_error;mean_abs_perc_error---------------------0.0423789161532639(1 row)
Earlier, you had to set up the columns of the rides_price_test table to
fit the format of MADlib's mean_abs_perc_error function. There
are multiple ways to evaluate the quality of a model's forecast
values. In this case, you calculated the mean absolute percentage
error and got 4.24%.
What can you take away from this? The non-seasonal ARIMA model predicts that the price of a trip from the airport to Manhattan remains constant at $62 and performs well against the testing dataset. Unlike some ride hailing apps such as Uber that have surge pricing during rush hours, yellow taxicab prices stay pretty much constant all day.
From a technical standpoint, you have seen how TimescaleDB integrates seamlessly with other PostgreSQL extensions PostGIS and MADlib. This means that TimescaleDB users can easily take advantage of the vast PostgreSQL ecosystem.
The Holt-Winters model is another widely used tool in time-series analysis and forecasting. It can only be used for seasonal time-series data. The Holt-Winters model uses simple exponential smoothing to make future predictions. So with time-series data, the forecast is calculated from taking a weighted average of past values, with more recent data points having greater weight than previous points. Holt-Winters is considered to be simpler than ARIMA, but there is no clear answer as to which time-series prediction model is superior in time-series forecasting. It is advised to create both models for a particular dataset and compare the performance to find out which is more suitable.
You can use Python to analyze how long it takes from the Financial District to Times Square at different time periods during the day. You need to install these Python packages:
pip install psycopg2pip install pandaspip install numpypip install statsmodels
The format of the data is very similar to the previous two sections.
The trip_length column in the rides_length table is the average
length of a ride from the Financial District to Times Square in the
given time period.
SELECT * FROM rides_length;three_hour | trip_length---------------------+-----------------2016-01-01 00:00:00 | 00:21:50.0909092016-01-01 03:00:00 | 00:17:15.82016-01-01 06:00:00 | 00:13:21.6666672016-01-01 09:00:00 | 00:14:20.6252016-01-01 12:00:00 | 00:16:32.3666672016-01-01 15:00:00 | 00:19:16.9215692016-01-01 18:00:00 | 00:22:46.52016-01-01 21:00:00 | 00:17:22.2857142016-01-02 00:00:00 | 00:19:242016-01-02 03:00:00 | 00:19:242016-01-02 06:00:00 | 00:12:13.52016-01-02 09:00:00 | 00:17:17.7857142016-01-02 12:00:00 | 00:20:56.7857142016-01-02 15:00:00 | 00:24:41.7307692016-01-02 18:00:00 | 00:29:39.5555562016-01-02 21:00:00 | 00:20:09.6...
You can also create two PostgreSQL views for the training and testing datasets.
-- Make the training datasetCREATE VIEW rides_length_train ASSELECT * FROM rides_lengthWHERE three_hour <= '2016-01-21 23:59:59';-- Make the testing datasetCREATE VIEW rides_length_test ASSELECT * FROM rides_lengthWHERE three_hour >= '2016-01-22 00:00:00';
Python has a psycopg2 package that allows you to query the
database in Python:
import psycopg2import psycopg2.extras# establish connectionconn = psycopg2.connect(dbname='nyc_data', user='postgres', host='localhost')# cursor object allows querying of database# server-side cursor is created to prevent records to be downloaded until explicitly fetchedcursor_train = conn.cursor('train', cursor_factory=psycopg2.extras.DictCursor)cursor_test = conn.cursor('test', cursor_factory=psycopg2.extras.DictCursor)# execute SQL querycursor_train.execute('SELECT * FROM rides_length_train')cursor_test.execute('SELECT * FROM rides_length_test')# fetch records from databaseride_length_train = cursor_train.fetchall()ride_length_test = cursor_test.fetchall()
You can now manipulate the data to feed it into the Holt-Winters model.
import pandas as pdimport numpy as np# make records into a pandas dataframeride_length_train = pd.DataFrame(np.array(ride_length_train), columns = ['time', 'trip_length'])ride_length_test = pd.DataFrame(np.array(ride_length_test), columns = ['time', 'trip_length'])# convert the type of columns of dataframe to datetime and timedeltaride_length_train['time'] = pd.to_datetime(ride_length_train['time'], format = '%Y-%m-%d %H:%M:%S')ride_length_test['time'] = pd.to_datetime(ride_length_test['time'], format = '%Y-%m-%d %H:%M:%S')ride_length_train['trip_length'] = pd.to_timedelta(ride_length_train['trip_length'])ride_length_test['trip_length'] = pd.to_timedelta(ride_length_test['trip_length'])# set the index of dataframes to the timestampride_length_train.set_index('time', inplace = True)ride_length_test.set_index('time', inplace = True)# convert trip_length into a numeric value in secondsride_length_train['trip_length'] = ride_length_train['trip_length']/np.timedelta64(1, 's')ride_length_test['trip_length'] = ride_length_test['trip_length']/np.timedelta64(1, 's')
This data can now be used to train a Holt-Winters model that is imported from
the statsmodels package. You can expect the pattern to
repeat weekly, and therefore set the seasonal_periods parameter to 56 (there
are eight 3-hour periods in a day, seven days in a week). Since the seasonal
variations are likely to be fairly constant over time, you can use the additive
method rather than the multiplicative method, which is specified by the trend
and seasonal parameters.
from statsmodels.tsa.api import ExponentialSmoothingfit = ExponentialSmoothing(np.asarray(ride_length_train['trip_length']), seasonal_periods = 56, trend = 'add', seasonal = 'add').fit()
You use the model that has been trained to make a forecast and compare with the testing dataset.
ride_length_test['forecast'] = fit.forecast(len(ride_length_test))

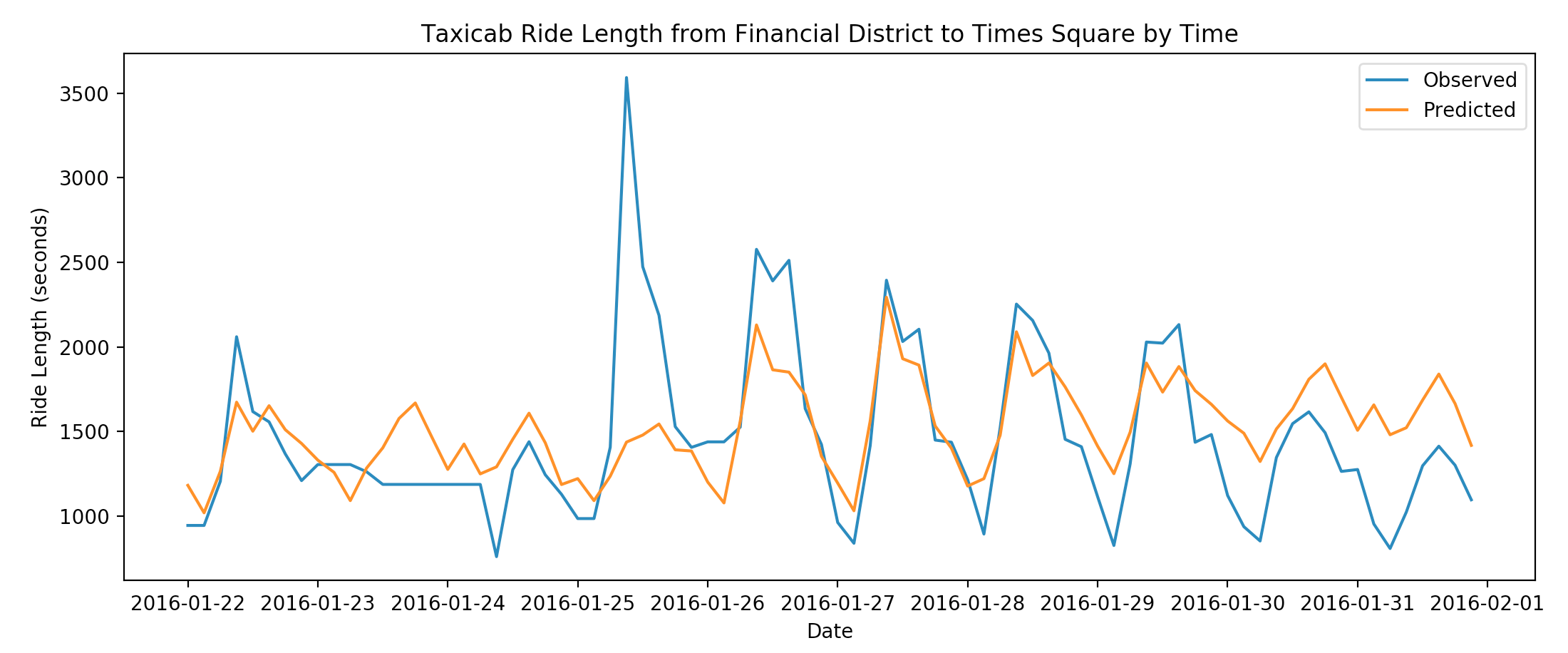

Now ride_length_test has a column with the observed values and
predicted values from January 22 to January 31. You can plot
these values on top of each other to make a visual comparison:
import matplotlib.pyplot as pltplt.plot(ride_length_test)plt.title('Taxicab Ride Length from Financial District to Times Square by Time')plt.xlabel('Date')plt.ylabel('Ride Length (seconds)')plt.legend(['Observed', 'Predicted'])plt.show()
The model predicts that the length of a trip from the Financial District to Times Square fluctuates roughly between 16 minutes and 38 minutes, with high points midday and low points overnight. The trip length is notably longer during weekdays than it is during weekends (January 23, 24, 30, 31).
The initial reaction from the plotted graph is that the model does a relatively good job in capturing the overall trend, but at times has quite a large margin of error. This can be due to the inherent irregularity of Manhattan's traffic situation with frequent roadblocks, accidents, and unexpected weather conditions. Moreover, as it was the case with taxi pickup counts in your analysis with R using the seasonal ARIMA model, the Holt-Winters model was also thrown off by the anomalous data points on Martin Luther King day on the previous Monday.
This tutorial looked at different ways you can build statistical models to analyze time-series data and how you can leverage the full power of the PostgreSQL ecosystem with TimescaleDB. This tutorial also looked at integrating TimescaleDB with R, Apache MADlib, and Python. You can simply choose the option you are most familiar with from a vast number of choices that TimescaleDB inherits from PostgreSQL. ARIMA and Holt-Winters are just a couple from a wide variety of statistical models and machine learning algorithms that you can use to analyze and make predictions on time-series data in your TimescaleDB database.
