About compression

Compressing your time-series data allows you to reduce your chunk size by more than 90%. This saves on storage costs, and keeps your queries operating at lightning speed.

When you enable compression, the data in your hypertable is compressed chunk by chunk. When the chunk is compressed, multiple records are grouped into a single row. The columns of this row hold an array-like structure that stores all the data. This means that instead of using lots of rows to store the data, it stores the same data in a single row. Because a single row takes up less disk space than many rows, it decreases the amount of disk space required, and can also speed up your queries.

Note

Most indexes set on the hypertable are removed or ignored when reading from compressed chunks. Timescale creates and uses custom indexes to incorporate the segmentby and orderby parameters during compression.

This section explains how to enable native compression, and then goes into detail on the most important settings for compression, to help you get the best possible compression ratio.

You can enable compression on individual hypertables, by declaring which column you want to segment by. This procedure uses an example table, called example, and segments it by the device_id column. Every chunk that is more than seven days old is then marked to be automatically compressed.

For more information, see the API reference for ALTER TABLE (compression) and add_compression_policy.

You can also set a compression policy through the Timescale console. The compression tool automatically generates and runs the compression commands for you. To learn more, see the Timescale documentation.

To view the compression policy that you've set:

SELECT * FROM timescaledb_information.jobs
  WHERE proc_name='policy_compression';

Copy

For more information, see the API reference for timescaledb_information.jobs.

To remove a compression policy, use remove_compression_policy. For example, to remove a compression policy for a hypertable named cpu:

SELECT remove_compression_policy('cpu');

Copy

For more information, see the API reference for remove_compression_policy.

You can disable compression entirely on individual hypertables. This command works only if you don't currently have any compressed chunks:

ALTER TABLE <TABLE_NAME> SET (timescaledb.compress=false);

Copy

If your hypertable contains compressed chunks, you need to decompress each chunk individually before you can disable compression.

Data is usually compressed after an interval of time, and not immediately. In the "Enabling compression" procedure, you used a seven day compression interval. Choosing a good compression interval can make your queries more efficient, and also allow you to handle data that is out of order.

Research has shown that when data is newly ingested, the queries are more likely to be shallow in time, and wide in columns. Generally, they are debugging queries, or queries that cover the whole system, rather than specific, analytic queries. An example of the kind of query more likely for new data is "show the current CPU usage, disk usage, energy consumption, and I/O for a particular server". When this is the case, the uncompressed data has better query performance, so the native PostgreSQL row-based format is the best option.

However, as data ages, queries are likely to change. They become more analytical, and involve fewer columns. An example of the kind of query run on older data is "calculate the average disk usage over the last month." This type of query runs much faster on compressed, columnar data.

To take advantage of this and increase your query efficiency, you want to run queries on new data that is uncompressed, and on older data that is compressed. Setting the right compression policy interval means that recent data is ingested in an uncompressed, row format for efficient shallow and wide queries, and then automatically converted to a compressed, columnar format after it ages and is more likely to be queried using deep and narrow queries. Therefore, one consideration for choosing the age at which to compress the data is when your query patterns change from shallow and wide to deep and narrow.

Trying to change chunks that have already been compressed can be inefficient. You can always query data in compressed chunks, but the current version of compression does not support DELETE actions on compressed chunks. This limitation means you really only want to compress a chunk at a time when it is unlikely to be modified again. How much time this requires is highly dependent on your individual setup. Choose a compression interval that minimizes the need to decompress chunks, but keep in mind that you want to avoid storing data that is out of order.

You can manually decompress a chunk to modify it if you need to. For more information on how to do that, see decompressing chunks.

A chunk can be in one of three states:

• Active and uncompressed
• Compression candidate and uncompressed
• Compressed

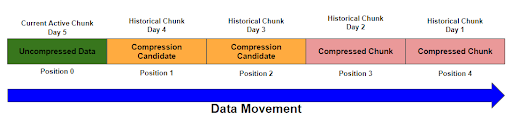

Active chunks are uncompressed and able to ingest data. Due to the nature of the compression mechanism, they cannot effectively ingest data while compressed. As shown in this illustration, as active chunks age, they become compression candidates, and are eventually compressed when they become old enough according to the compression policy.

Expand image

When you compress data, you need to select which column to segment by. Each row in a compressed table must contain data about a single item. The column that a table is segmented by contains only a single entry, while all other columns can have multiple arrayed entries. For example, in this compressed table, the first row contains all the values for device ID 1, and the second row contains all the values for device ID 2:

Because a single value is associated with each compressed row, there is no need to decompress to evaluate the value in that column. This means that queries with WHERE clauses that filter by a segmentby column are much more efficient, because decompression can happen after filtering instead of before. This avoids the need to decompress filtered-out rows altogether.

Because some queries are more efficient than others, it is important to pick the correct set of segmentby columns. If your table has a primary key all of the primary key columns, except for time, can go into the segmentby list. For example, if our example table uses a primary key on (device_id, time), then the segmentby list is device_id.

Another method is to determine a set of values that can be graphed over time. For example, in this EAV (entity-attribute-value) table, the series can be defined by device_id and metric_name. Therefore, the segmentby option should be device_id, metric_name:

The segmentby columns are useful, but can be overused. If you specify a lot of segmentby columns, the number of items in each compressed column is reduced, and compression is not as effective. A good guide is for each segment to contain at least 100 rows per chunk. To achieve this, you might also need to use the compress_orderby column.

By default, the items inside a compressed array are arranged in descending order according to the hypertable's time column. In most cases, this works well, provided you have set the segmentby option appropriately. However, in some more complicated scenarios, you want to manually adjust the compress_orderbysetting as well. Changing this value can improve the compression ratio and query performance.

Compression is most effective when adjacent data is close in magnitude or exhibits some sort of trend. Random data, or data that is out of order, compresses poorly. This means that it is important that the order of the input data causes it to follow a trend.

In this example, there are no segmentby columns set, so the data is sorted by the time column. If you look at the cpu column, you can see that it might not be able to be compressed, because even though both devices are outputting a value that is a float, the measurements have different magnitudes, with device 1 showing numbers around 88, and device 2 showing numbers around 300:

To improve the performance of this data, you can order by device_id, time DESC instead, using these commands:

ALTER TABLE  example
  SET (timescaledb.compress,
       timescaledb.compress_orderby = 'device_id, time DESC');

Copy

Using those settings, the compressed table now shows each measurement in consecutive order, and the cpu values show a trend. This table compresses much better:

Putting items in orderby and segmentby columns often achieves similar results. In this same example, if you set it to segment by the device_id column, it has good compression, even without setting orderby. This is because ordering only matters within a segment, and segmenting by device means that each segment represents a series if it is ordered by time. So, if segmenting by an identifier causes segments to become too small, try moving the segmentby column into a prefix of the orderby list.

You can also use ordering to increase query performance. If a query uses similar ordering as the compression, you can decompress incrementally and still return results in the same order. You can also avoid a SORT. Additionally, the system automatically creates additional columns to store the minimum and maximum value of any orderby column. This way, the query executor looks at this additional column that specifies the range of values in the compressed column, without first performing any decompression, in order to determine whether the row could possibly match a time predicate specified by the query.

In TimescaleDB 2.3 and later, you can insert data directly into compressed chunks. When you do this,the data that is being inserted is not compressed immediately. It is stored alongside the chunk it has been inserted into, and then a separate job merges it with the chunk and compresses it later on.
